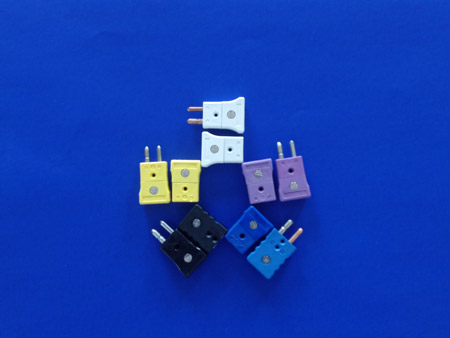

Standard Thermocouple Connector 2 Pole

• Glass filled themoplastic body provides high strength at temperatures up to 425°F (218°C) as well as low moisture absorption and good dielectric constant.
• Heavy duty hollow pin construction prevents reverse mating of polarity.
• Thermocouple connector body color coded to ISA and ANSI standards.
• Polarity indicated by symbols molded into body.
• Contacts made of thermocouple materials which meet ISA and ANSI standards.
• Jack spring loaded to insure firm grip to plug.
• Accepts wire sizes to 14 awg.
• Single screw and tube adapter for product from 0.020 to 0.375.
• Finger grips to permit ease of connection.
• Quick wiring hook up with large head screw and wire channel.

Downloads:

• Connector Systems for Thermocouples

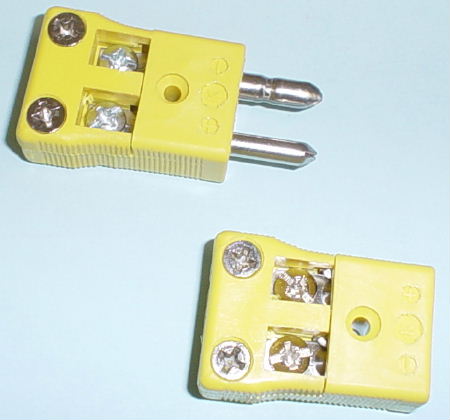

Standard Thermocouple Connector Jab In Style 2 Pole

• Glass filled themoplastic body provides high strength at temperatures up to 425°F (218°C) as well as low moisture absorption and good dielectric constant.
• Heavy duty hollow pin construction prevents reverse mating of polarity.
• Thermocouple connector body color coded to ISA and ANSI standards.
• Polarity indicated by symbols molded into body.
• Contacts made of thermocouple material which meet ISA and ANSI standards.
• Jack spring loaded to insure firm grip to plug.
• Accepts wire sizes 20 awg to 14 awg. 8 awg available.
• Finger grips to permit ease of connection.
• Quick wiring hook up with large head screw and wire channel.

Downloads:

• Connector Systems for Thermocouples

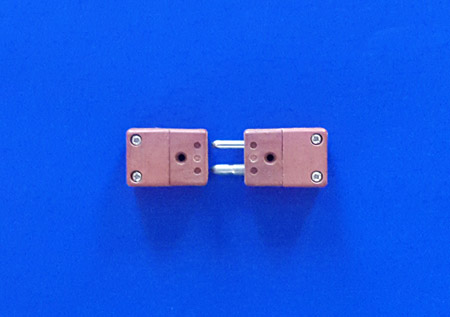

High Temperature Thermocouple Connector 2 Pole

• Glass filled themoset body provides for use at temperatures to 800°F (425°C) continuous and 1000°F (540°C) intermittent.
• Heavy duty hollow pin construction prevents reverse mating of polarity.
• Body color red to designate High Temperature.
• Calibration and polarity indicated by symbols molded into body.
• Contacts made of thermocouple materials which meet ISA and ANSI standards.
• Jack spring loaded to insure firm grip to plug.
• Accepts wire size to 14 awg.
• Provided with wire channel and large head screws for positive connection.
• Accepts crimp sizes to 1/4" and tube adapters to 3/8".
• Finger grips permit ease of connection.

Downloads:

• Connector Systems for Thermocouples

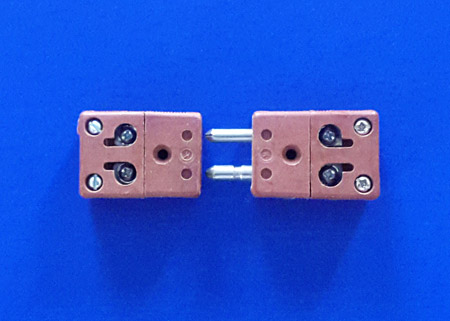

High Temperature Jab In Style Thermocouple Connector 2 Pole

• Glass filled themoset body provides for use at temperatures to 800°F (425°C) continuous and 1000°F (540°C) intermittent.
• Heavy duty hollow pin construction prevents reverse mating of polarity.
• Body color red to designate High Temperature.
• Calibration and polarity indicated by symbols molded into body.
• Contacts made of thermocouple materials which meet ISA and ANSI standards.
• Jack spring loaded to insure firm grip to plug.
• Accepts wire size to 14 awg.
• Provided with wire channel and large head screws for positive connection.
• May be used with wire clamp bracket or compression tube adapter.
• Finger grips to permit ease of connection.

Downloads:

• Connector Systems for Thermocouples

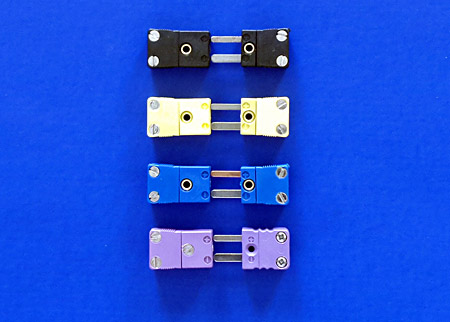

Miniature Thermocouple Connector

• Themoplastic body provides high strength at temperatures up to 425°F (218°C) as well as low moisture absorption and good dielectric constant.
• Small, light weight and space saving.
• Thermocouple connector body color coded to ISA and ANSI standards.
• Polarity indicated by symbols molded into body.
• Contacts made of thermocouple materials which meet ISA and ANSI standards.
• Jack spring loaded to insure firm grip to plug.
• Accepts crimp adapter for product from 0.020 to 0.125.
• Finger grips to permit ease of connection.
• 0.10" I.D. center mounting hole.

Downloads:

• Connector Systems for Thermocouples

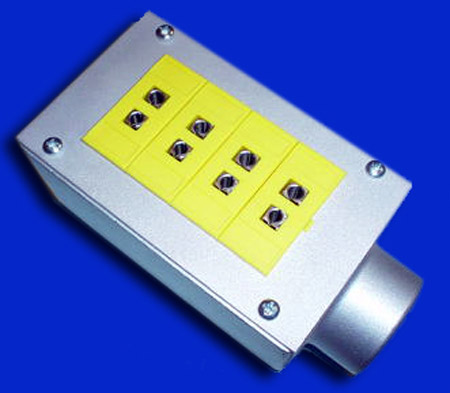

Jack Panel FS Box

• 1 to 6 circuits.
• Standard size aluminum panel (4 1/2" high by 2 3/4" wide).
• Panel jacks color coded for calibration identification per ISA and ANSI.
• Maximum temperature rating 400°F (204°C).
• Mating plugs standard 2 pole.
• Panel jacks constructed with heavy duty spring loaded inserts to insure positive plug engagement.
• Multi calibration available in same panel.
• Accommodate wire sizes to 14 awg.
• Conduit Boxes
• Cast aluminum boxes (2 1/8" deep) especially selected to fit the 1 to 6 circuit aluminum panel.
• 3/4" NPT connection accommodates use of a cable clamp or mounting conduit.

Downloads:

• Connector Systems for Thermocouples

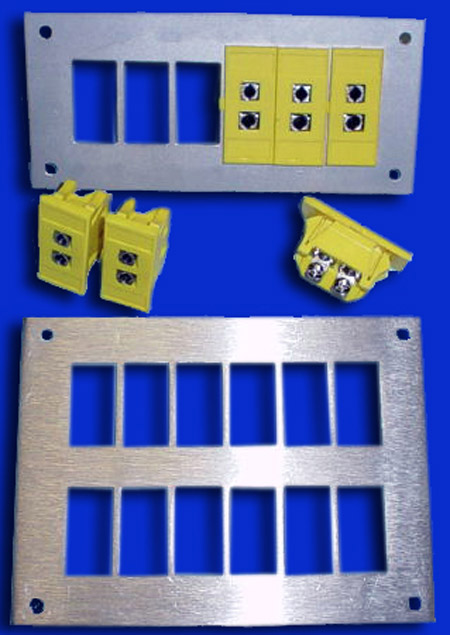

2 Pole Multicircuit Jack Panel Thermocouple Connector

• Standard or custom designed panel sizes.
• Snap in panel jacks.
• Bezel face color coded nylon inserts.
• Designed for ease of installation and removal.
• Flexible retaining tabs secure panel.
• Temperature to 400°F (204°C).
• Accepts wire up to 14 awg.
• Heavy duty spring loaded inserts to insure positive plug connection.
• Accepts any standard size male thermocouple connector.
• Front numbering standard; Custom lettering available upon request.

Downloads:

• Connector Systems for Thermocouples

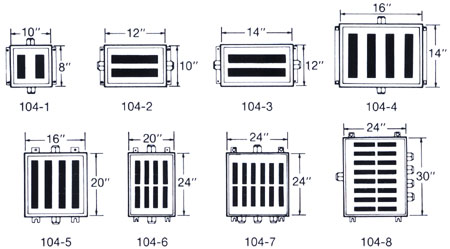

Precision Measurements Offers a Wide Variety of Thermocouple Connector System Components: Thermocouple Terminal Boxes

• Weatherproof Sheet Steel Multi-circuit box protects thermocouple and instrument cables from corrosive or dirty environments.
• Rigid weatherproof junction box which meets JIC Specifications 1, 2, 3 & 4 models and Nema 12 Specifications in the dash 5, 6, 7 & 8 models.
• Heavy 14 to 16 gage sheet steel, welded seams, and neoprene gasketed covers provide a strong rigid weatherproof box.
• Boxes have removable platform type terminal strip panels, lugs for wall mounting, and quick and easy screw clamps.
• Boxes are finished in a baked gray hammertonel enamel.
• Entrance hubs are affixed to the box wall to provide effective resistance to moisture.
• These boxes are also available in cast aluminum or cast iron construction on special order.
• All boxes 6" deep except 104-1 is 4" and 104-2 is 5".
