Industrial Thermocouples

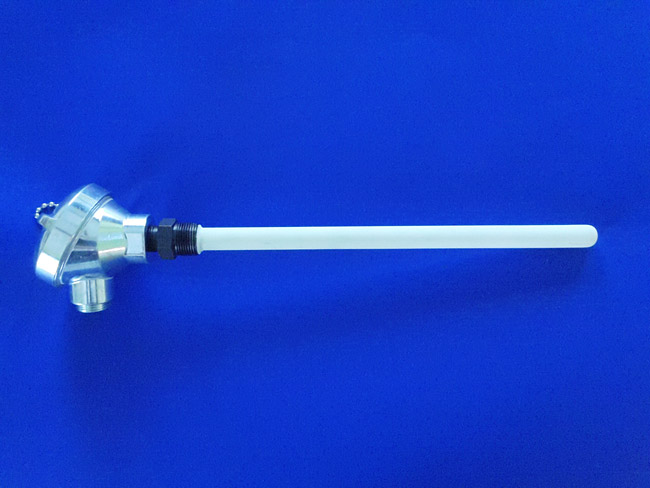

industrial thermocouple with ceramic protection tube

Industrial Thermocouple with Ceramic Protection Tube

Ceramic protection tube assemblies are constructed with alumina or mullite tubes. Ceramic tubes are commonly used to protect platinum thermocouple elements at high temperatures above 2200°F. They are gas tight with good mechanical strength and excellent abrasion resistance. Silica in the mullite tube can contaminate platinum thermocouple elements so alumina protection tubes are recommended.

We'll respond to your request for quote promptly, and we will work with you to meet your thermocouple needs!

Downloads:




industrial thermocouple with flanged well

Industrial Thermocouple with Flanged Well

Thermocouple assemblies with flanged well can be used in various process industries due to its rugged design. Industries include Chemical, Power, Primary Metals and Refineries.

Downloads:

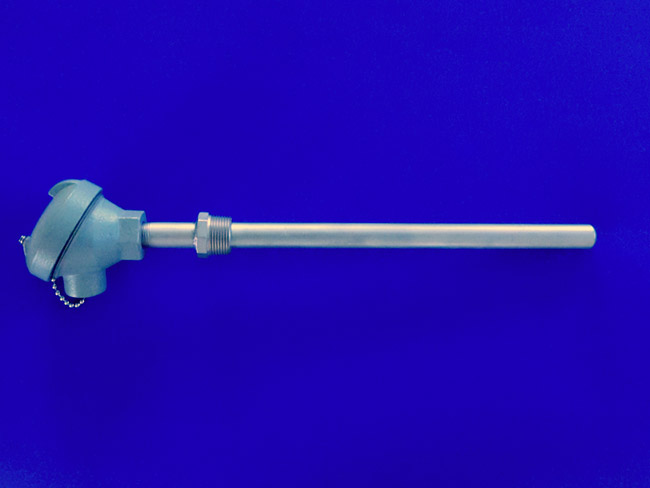

industrial thermocouple with metal protection tube

Industrial Thermocouple with Metal Protection Tube

Metal protection tubes offer good mechanical protection for base metal thermocouples up to 1150°C in oxidizing atmospheres. The tubes are made from standard schedule 40 pipe.

Downloads:

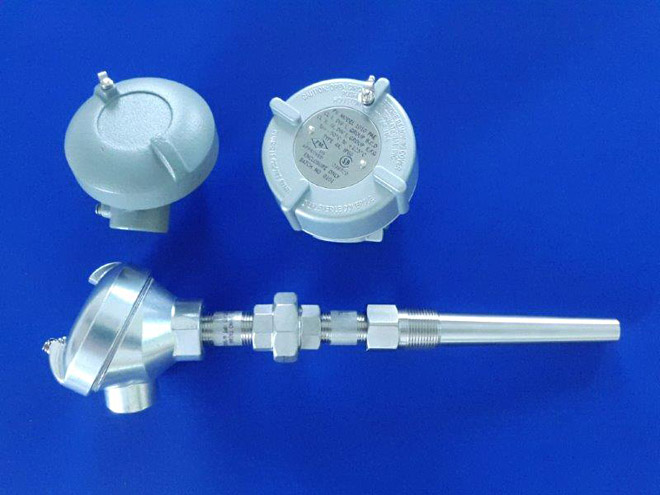

industrial thermocouple with screwed well

Industrial Thermocouple with Screwed Well

Screwed wells are the most common type of well assemblies. They are available in hex or round bar stock, straight, tapered or reduced tip. These wells are normally fitted into pipes, tanks or vessels where they can be threaded or welded.

Downloads:




industrial RTD with screwed well

Industrial RTD with Screwed Well

Precision Measurements industrial thermocouples are constructed from the highest quality components available. We are dedicated to providing you with the sensors that meet your precise thermocouple application requirements while maintaining our best possible delivery and lowest cost. We manufacture a complete thermocouple line including assemblies for chemical, power, primary metals and plastic industries.

We'll respond to your request for quote promptly, and we will work with you to meet your thermocouple needs!

Downloads:

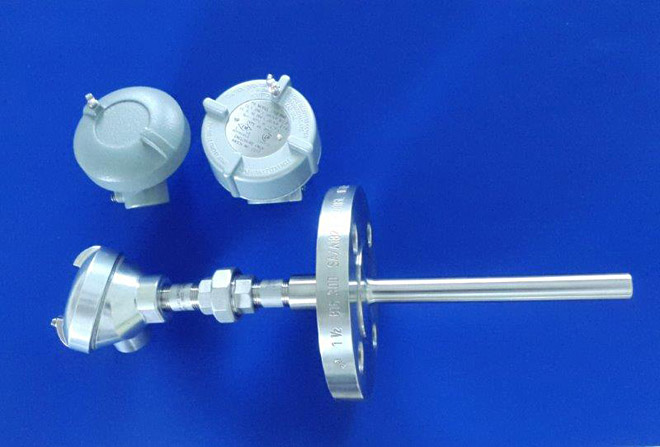

industrial RTD with flanged well

Industrial RTD with Flanged Well

Precision Measurements industrial thermocouples are constructed from the highest quality components available. We are dedicated to providing you with the sensors that meet your precise thermocouple application requirements while maintaining our best possible delivery and lowest cost. We manufacture a complete thermocouple line including assemblies for chemical, power, primary metals and plastic industries.

We'll respond to your request for quote promptly, and we will work with you to meet your thermocouple needs!

Downloads:

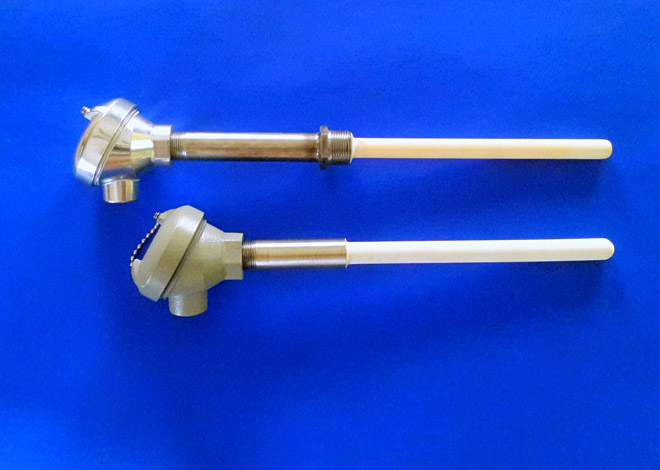

industrial platinum thermocouple with ceramic protection tube

Industrial Platinum Thermocouple with Ceramic Protection Tube

Platinum thermocouple types R, S and B with stainless steel sleeve and gas tight alumina tubes are designed for high temperatures applications above 2200°F. These thermocouples provide long stable service when used with a secondary alumina protection tube. Assemblies can be provided in an assortment of custom designs to meet your process requirements.

Downloads:
